EUROMODEL Indexed clamping lever with threaded stud
This product is not for sale! You can choose an alternative category plastic parts.
Material: Galvanized steel outer thread
Povrch: Satin
Barva těla páčky: Černá (RAL 9011)
Alternativa barev pro tělo páčky: Oranžová (RAL 2004 cod. 02)
Modrá (RAL 5015 cod. 07)
Žlutá (RAL 1021 cod. 10)
Červená (RAL 3000 cod.16)
Zelená (RAL 6024 cod.17)
Šedá (RAL 7035 cod. 13)
Materiál je odolný vůči olejům a mazivům. Materiál je vysoce odolný díky zesíleného skelného vlákna z technopolymeru.

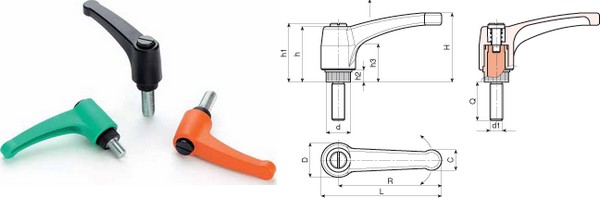

| Part Number | L | R | H | D | d | c | h | h1 | h2 | h3 | d1 | Q | Price for piece |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A581-43 M04x.. | 51 | 43 | 33 | 17 | 11,5 | 9 | 29 | 32 | 6 | 18 | M4 | 10-16-20-25-30-40 | 1,5 EUR |
| A581-43 M05x.. | 51 | 43 | 33 | 17 | 11,5 | 9 | 29 | 32 | 6 | 18 | M5 | 10-16-20-25-30-40 | 1,5 EUR |
| A581-43 M06x.. | 51 | 43 | 33 | 17 | 11,5 | 9 | 29 | 32 | 6 | 18 | M6 | 10-16-20-25-30-40-50 | 1,5 EUR |
| A581-52 M06x.. | 63 | 52 | 41 | 22 | 15 | 12 | 36 | 40 | 8 | 23 | M6 | 16-20-25-30-35-40-50 | 1,7 EUR |
| A581-52 M08x.. | 63 | 52 | 41 | 22 | 15 | 12 | 36 | 40 | 8 | 23 | M8 | 16-20-25-30-35-40-45-50 | 1,7 EUR |
| A581-65 M06x.. | 76 | 65 | 43 | 23 | 15 | 13 | 36 | 40 | 8 | 24 | M6 | 16-20-25-30-35-40-45-50 | 1,9 EUR |
| A581-65 M08x.. | 76 | 65 | 43 | 23 | 15 | 13 | 36 | 40 | 8 | 24 | M8 | 16-20-25-30-35-40-45-50 | 1,9 EUR |
| A581-80 M08x.. | 93 | 80 | 54 | 27 | 19 | 15,5 | 44 | 48 | 8,5 | 29 | M8 | 20-25-30-35-40-45-50 | 2,1 EUR |
| A581-80 M10x.. | 93 | 80 | 54 | 27 | 19 | 15,5 | 44 | 48 | 8,5 | 29 | M10 | 20-25-30-35-40-45-50 | 2,2 EUR |
| A581-80 M12x.. | 93 | 80 | 54 | 27 | 19 | 15,5 | 44 | 48 | 8,5 | 29 | M12 | 20-25-30-35-40-50-60-70-80 | 2,2 EUR |
| A581-94 M08x.. | 109 | 94 | 56 | 30 | 19 | 18 | 45 | 49 | 9 | 30 | M8 | 20-25-30-35-40-50 | 2,8 EUR |
| A581-94 M10x.. | 109 | 94 | 56 | 30 | 19 | 18 | 45 | 49 | 9 | 30 | M10 | 20-25-30-35-40-45-50-60-70-80 | 2,8 EUR |
| A581-94 M12x.. | 109 | 94 | 56 | 30 | 19 | 18 | 45 | 49 | 9 | 30 | M12 | 20-25-30-35-40-45-50-60-70-80 | 2,8 EUR |
| A581-108 M12x.. | 125 | 108 | 64 | 34 | 24 | 21 | 51 | 55 | 10 | 35 | M12 | 20-30-40-50-60-70 | 3 EUR |
| A581-108 M14x.. | 125 | 108 | 64 | 34 | 24 | 21 | 51 | 55 | 10 | 35 | M14 | 30-40-50-60 | 3,2 EUR |
| A581-108 M16x.. | 125 | 108 | 64 | 34 | 24 | 21 | 51 | 55 | 10 | 35 | M16 | 40-50-60 | 3,7 EUR |
Note: The price is determined by the lever length of the thread. The order number, enter the length of thread in two .. numeric codes (např. A581-43 M04x16)
Prices are without VAT (always for one product item). If specified order number, please, it will add it to the selected type of goods. We will be glad to send you any quantity. In case of large subscriptions, please contact us.
