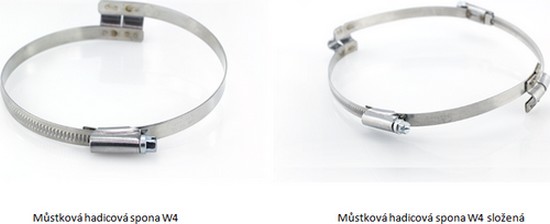

Bridge hose clamp W4

Bridge hose clamp W4

The bridge clamps are intended for spiral hoses, where other types of clamps have troubles when crossing the spiral form. Thanks to the bridge, the clamps are able to enlace the spiral hose over the entire circumference. The direction of the spirals on the hose is defined by the type of the bridge clamp, which are manufactured with either a right-hand or left-hand design with the bridge being 7.5 mm wide. The right-hand spiral hose can be identified by having the spiral receding from you in a clockwise direction when held perpendicularly to the body. Composite bridge clamps are made by connecting two bridge clamps. These are capable of enlacing hoses with large circumferences. The W4 bridge clamp is made from chromium-nickel steel (17-20% chrome, 9-12% nickel), per the ÈSN 417240 standard (AISI 304, DIN 1.4301).

Left-handed bridge clamp
diameter/width
[mm]
price/pc
L-MUSTEK W4 27-47/92,5 EUR
L-MUSTEK W4 45-65/92,5 EUR
L-MUSTEK W4 55-75/92,5 EUR
L-MUSTEK W4 65-85/92,6 EUR
L-MUSTEK W4 75-95/92,7 EUR
L-MUSTEK W4 85-105/92,8 EUR
L-MUSTEK W4 95-115/92,8 EUR
L-MUSTEK W4 105-125/93 EUR
L-MUSTEK W4 115-135/93,1 EUR
L-MUSTEK W4 125-145/93,4 EUR
L-MUSTEK W4 135-155/93,5 EUR
L-MUSTEK W4 145-165/93,5 EUR
L-MUSTEK W4 155-175/93,6 EUR
L-MUSTEK W4 165-185/93,8 EUR
L-MUSTEK W4 175-195/93,8 EUR
L-MUSTEK W4 185-205/93,9 EUR
L-MUSTEK W4 195-215/94,1 EUR
L-MUSTEK W4 205-225/94,2 EUR
L-MUSTEK W4 215-235/94,3 EUR
L-MUSTEK W4 225-245/94,4 EUR
L-MUSTEK W4 235-255/94,6 EUR
L-MUSTEK W4 245-265/94,7 EUR
L-MUSTEK W4 255- 275/94,8 EUR
L-MUSTEK W4 265-285/94,9 EUR
L-MUSTEK W4 275-295/95 EUR
L-MUSTEK W4 285-305/95,2 EUR
Bridge hose clamp composed
diameter/width
[mm]
price/pc
MUSTEK W4 270-310/97,4 EUR
MUSTEK W4 280-320/97,6 EUR
MUSTEK W4 290-330/97,7 EUR
MUSTEK W4 300-340/97,8 EUR
MUSTEK W4 310-350/97,8 EUR
MUSTEK W4 320-360/97,9 EUR
MUSTEK W4 330-370/98 EUR
MUSTEK W4 340-380/98,1 EUR
MUSTEK W4 350-390/98,2 EUR
MUSTEK W4 360-400/98,2 EUR
MUSTEK W4 370-410/98,2 EUR
MUSTEK W4 380-420/98,3 EUR
MUSTEK W4 390-430/98,3 EUR
MUSTEK W4 400-440/98,4 EUR
MUSTEK W4 410-450/98,5 EUR
MUSTEK W4 420-460/98,8 EUR
MUSTEK W4 430-470/99 EUR
MUSTEK W4 440-480/99 EUR
MUSTEK W4 450-490/99,2 EUR
MUSTEK W4 460-500/99,2 EUR
MUSTEK W4 470-510/99,3 EUR
MUSTEK W4 480-520/99,4 EUR
MUSTEK W4 490-530/99,7 EUR
MUSTEK W4 500-540/99,8 EUR
MUSTEK W4 510-550/910 EUR
MUSTEK W4 520-560/910 EUR
MUSTEK W4 530-570/911 EUR
MUSTEK W4 540-580/911 EUR
MUSTEK W4 550-590/911 EUR
MUSTEK W4 560-600/911 EUR
MUSTEK W4 570-610/911 EUR


Prices are without VAT (always for one product item). If specified order number, please, it will add it to the selected type of goods. We will be glad to send you any quantity. In case of large subscriptions, please contact us.
